[702] Firewall
Tank Series

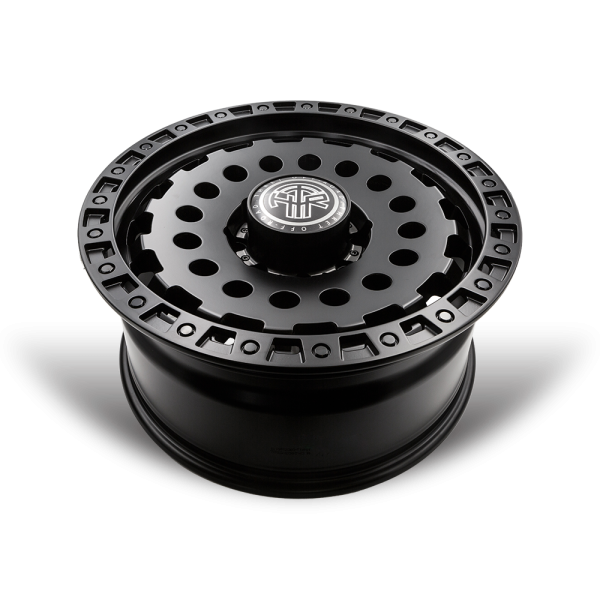

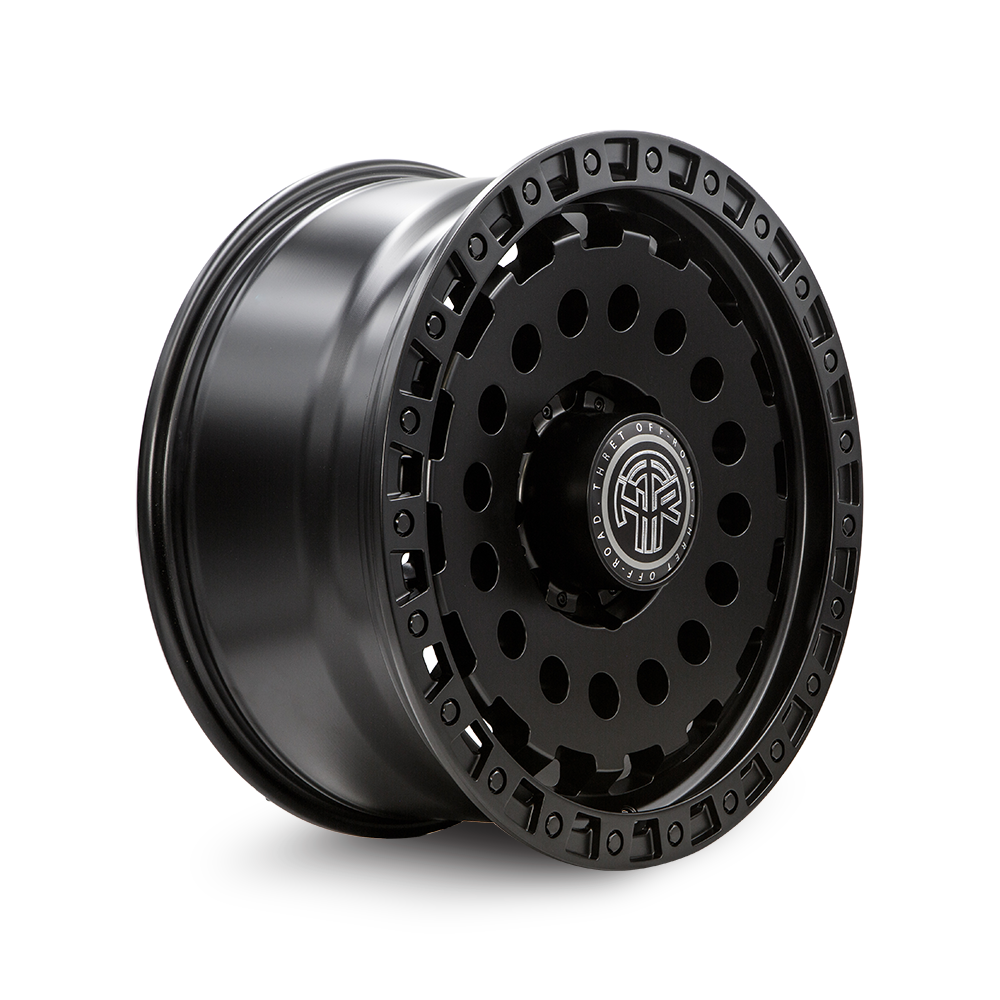

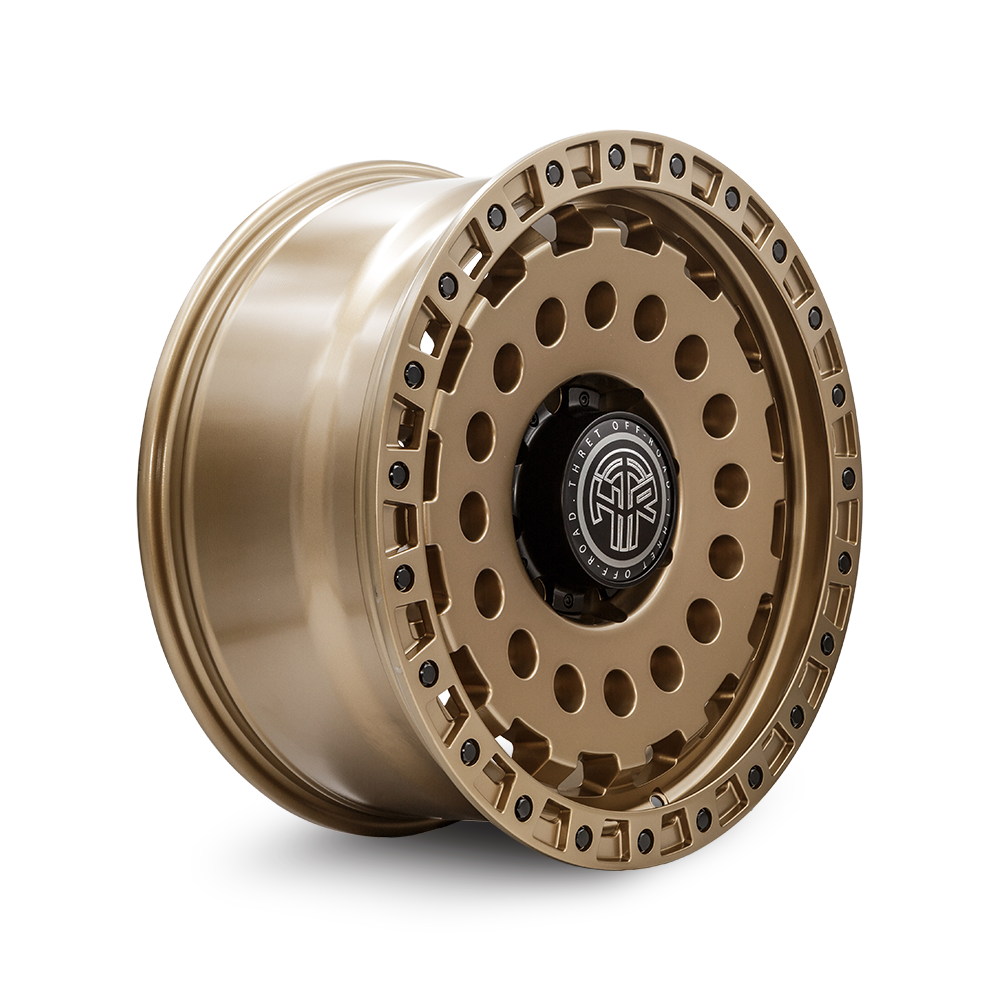

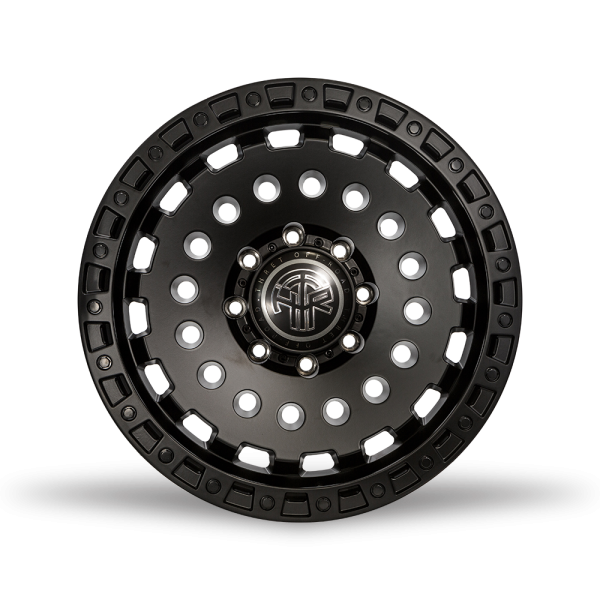

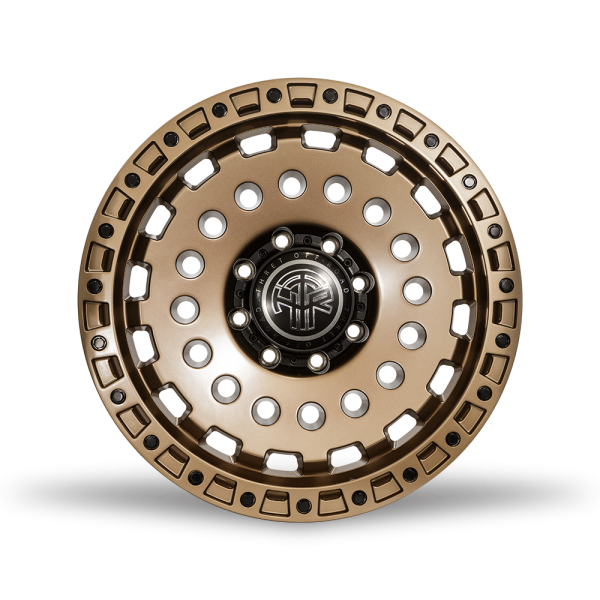

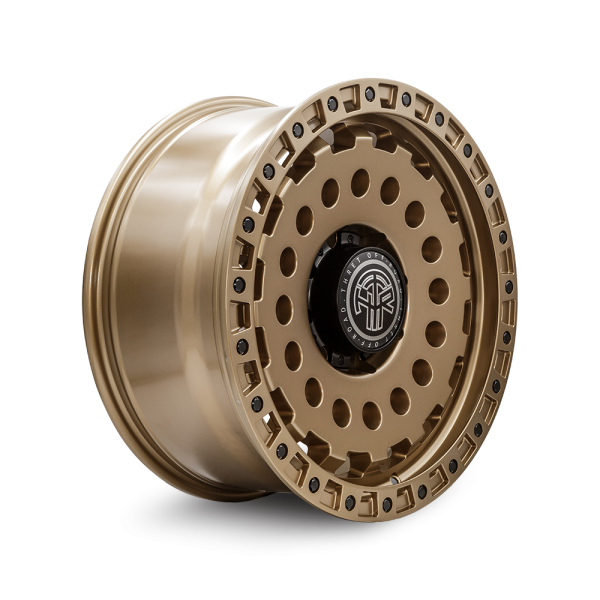

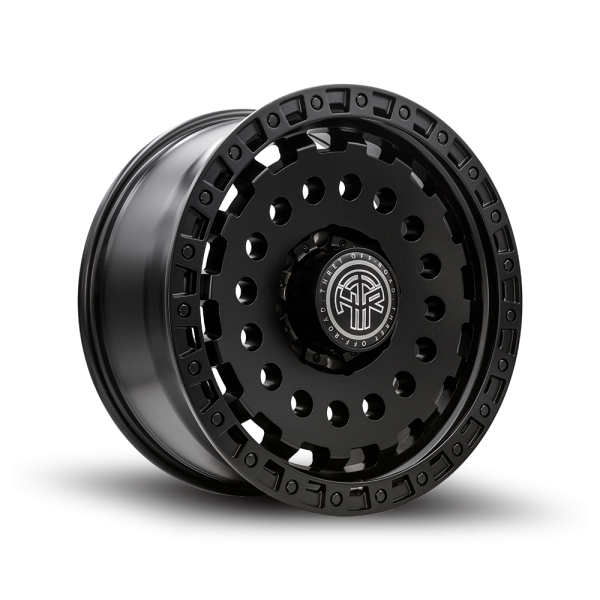

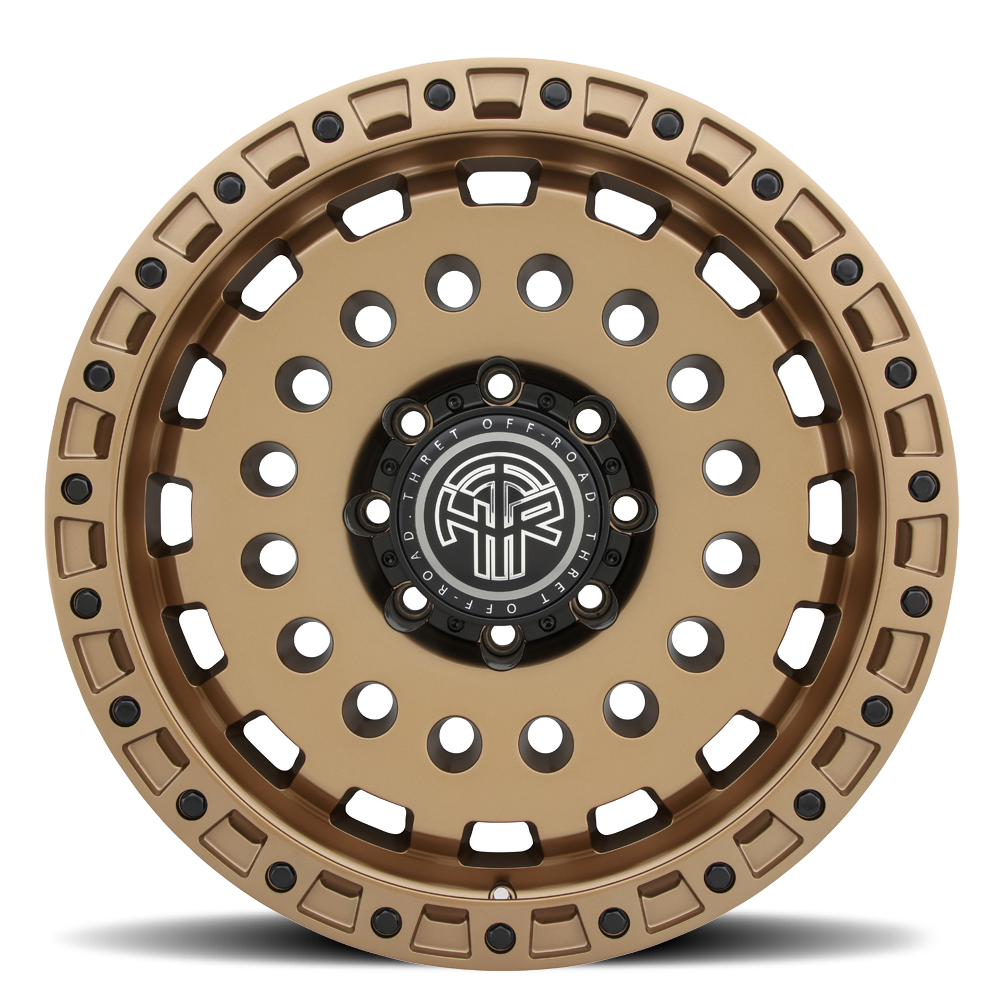

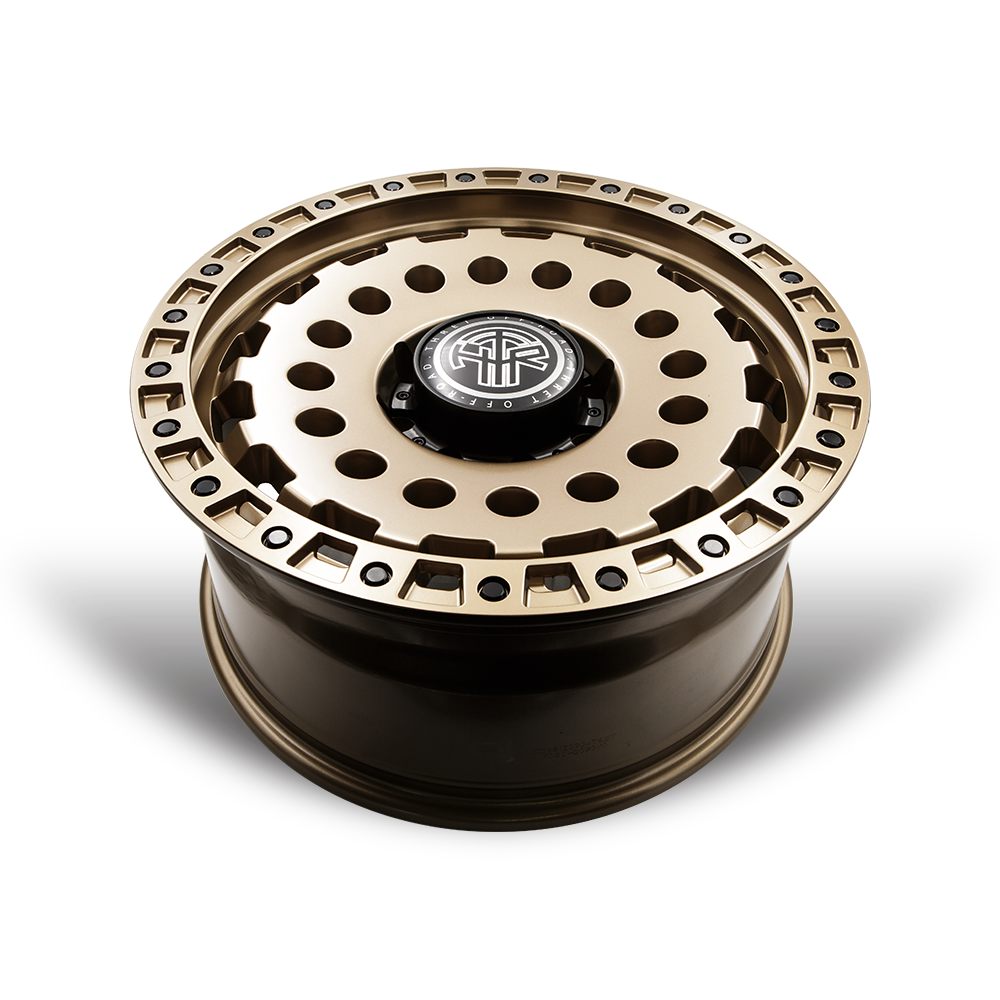

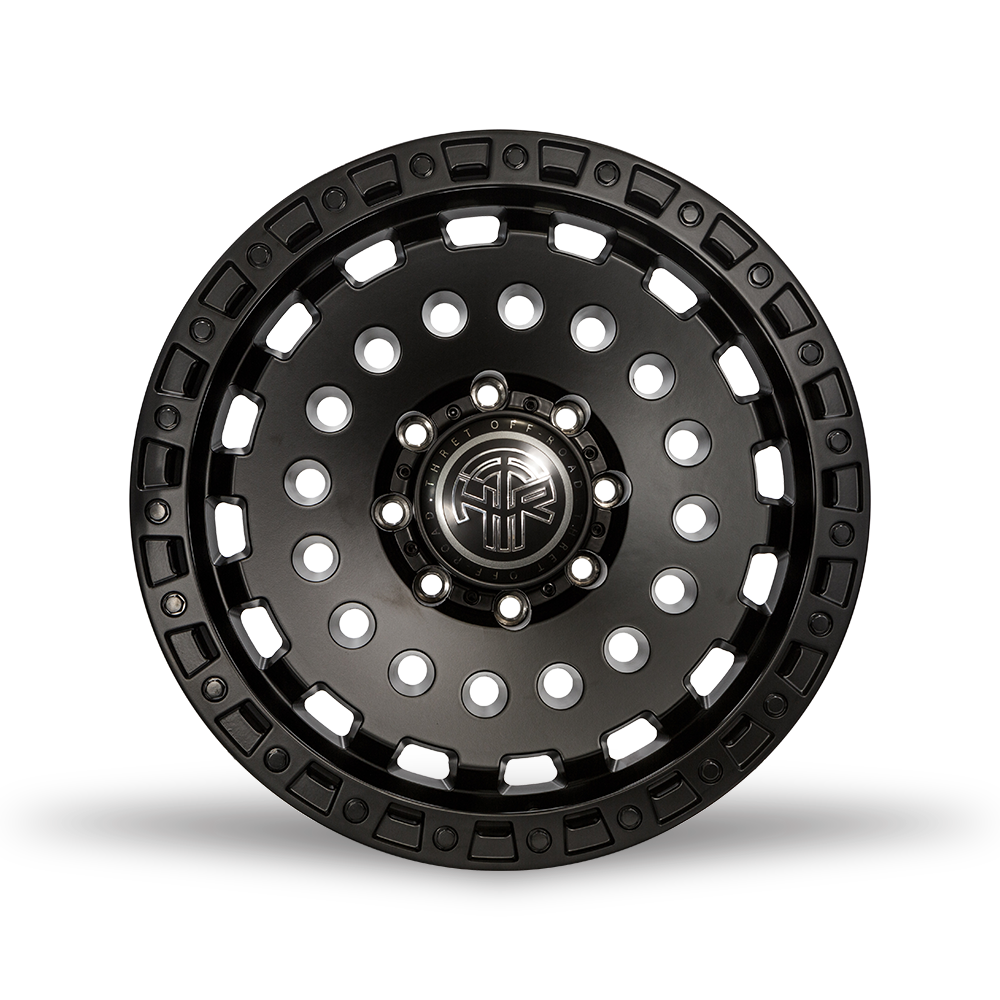

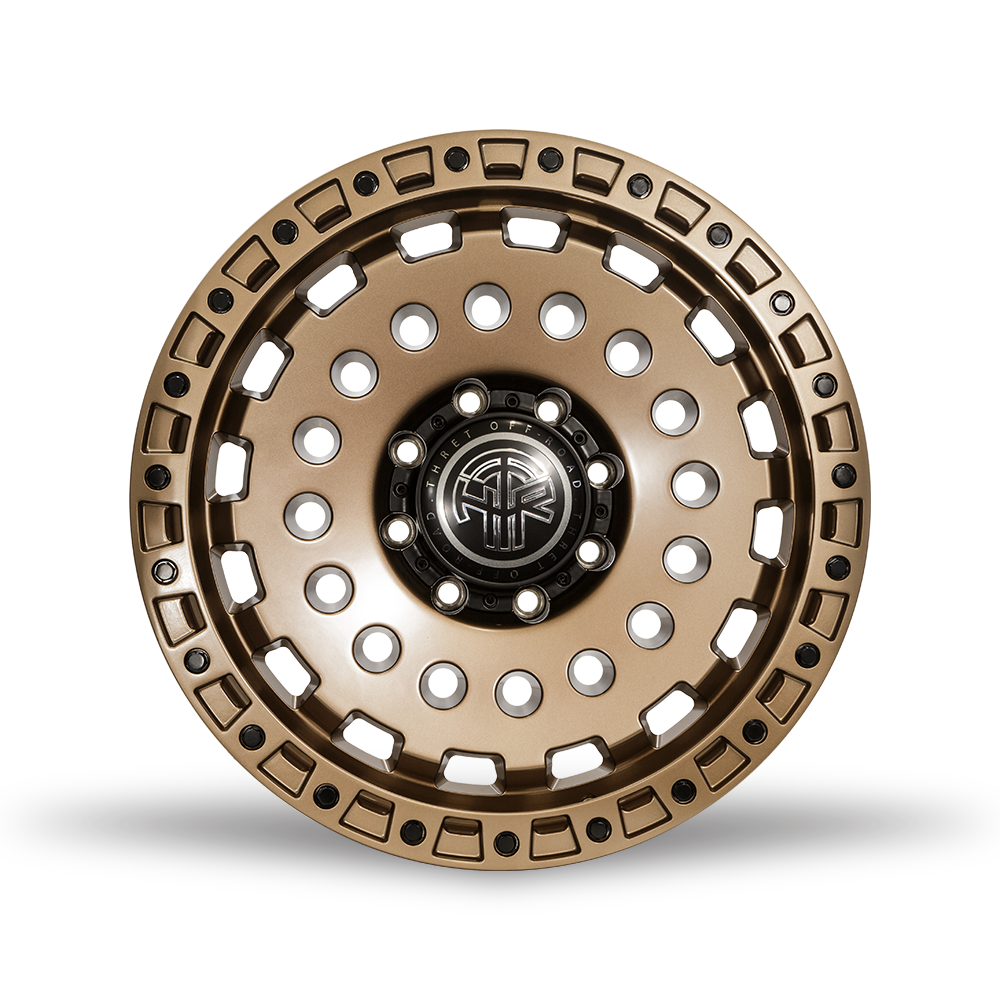

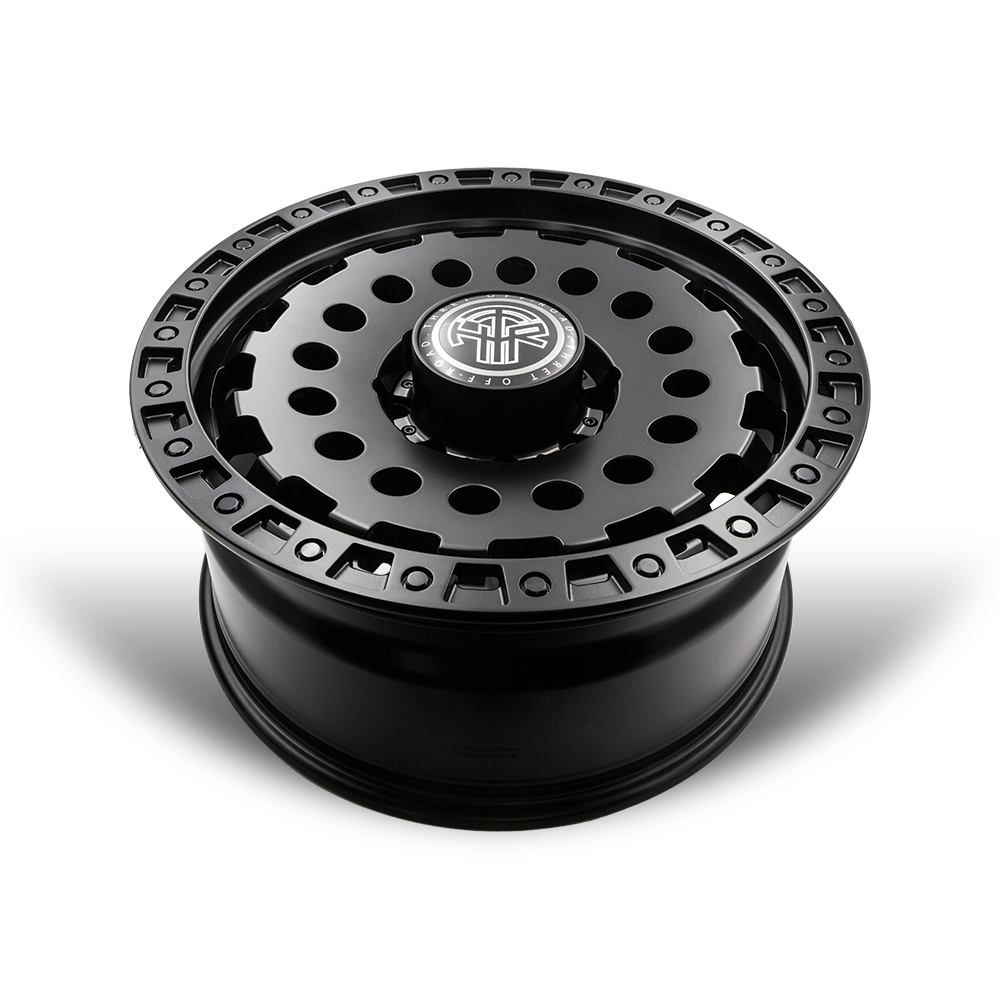

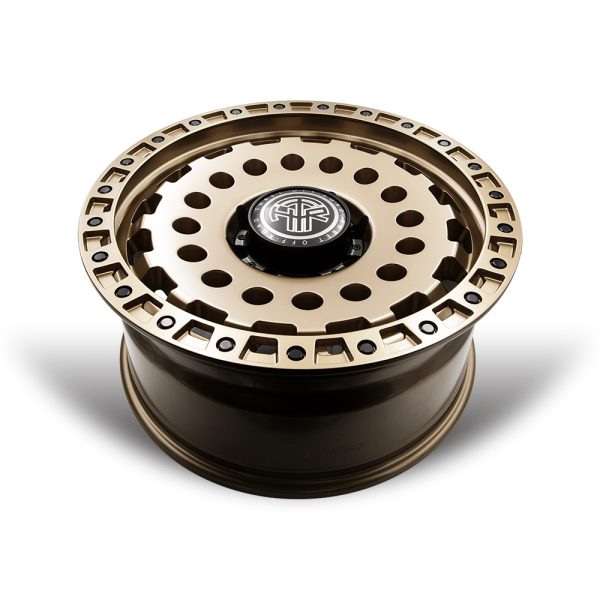

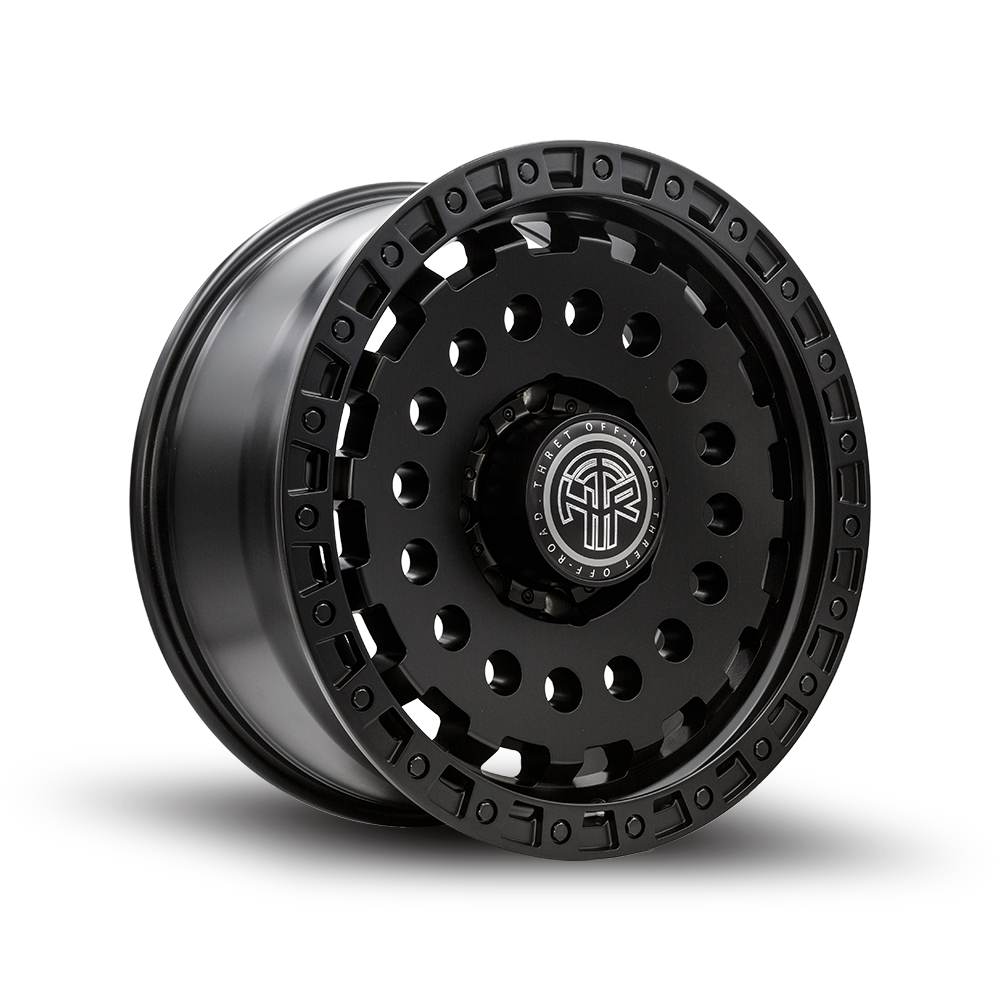

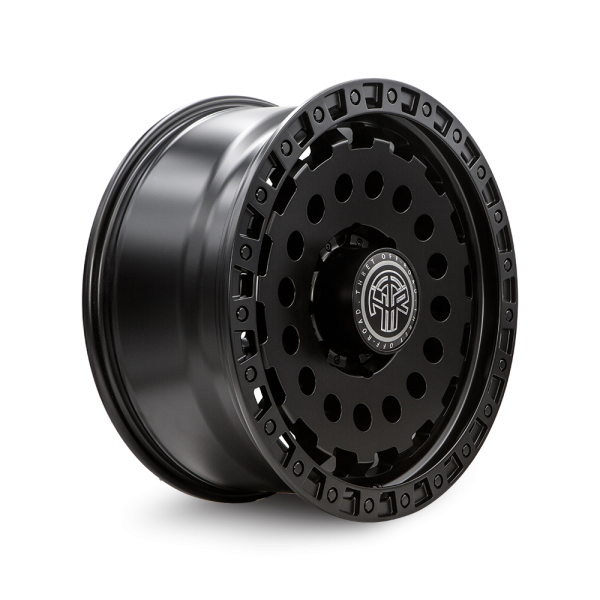

The Thret 702 Firewall Wheel is a full face design with a lip in full Satin Black Finish as well has a full Bronze Finish. Rivets on the Thret Firewall wheel are stainless steel to prevent rust for harsh conditions. The Firewall Wheel is available in 5,6, and 8 lug applications.
Sizes Available
17 x 9
18×9
20×9
| Brand | Part # | Name | Style | Diameter | Width | Hub | PCD1 | PCD2 | Offset | Cap | Finish | Load Rating | UPC | Backspace |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Thret | 702I-1790F-12 | Firewall | 702 | 17 | 9.0 | 73 | 5x114.3 | -12 | Bronze | 2500 | 840177403606 | 4.5 | ||
| Thret | 702I-1790F18 | Firewall | 702 | 17 | 9.0 | 73 | 5x114.3 | 18 | Bronze | 2500 | 840177403613 | 5.7 | ||
| Thret | 702I-1790J-12 | Firewall | 702 | 17 | 9.0 | 78.1 | 5x127 | -12 | Bronze | 2500 | 840177403620 | 4.5 | ||
| Thret | 702I-1790J18 | Firewall | 702 | 17 | 9.0 | 78.1 | 5x127 | 18 | Bronze | 2500 | 840177403637 | 5.7 | ||
| Thret | 702I-1790T-12 | Firewall | 702 | 17 | 9.0 | 87.1 | 6x135 | -12 | Bronze | 2500 | 840177403644 | 4.5 | ||
| Thret | 702I-1790T18 | Firewall | 702 | 17 | 9.0 | 87.1 | 6x135 | 18 | Bronze | 2500 | 840177403651 | 5.7 | ||
| Thret | 702I-1790U-12 | Firewall | 702 | 17 | 9.0 | 106.1 | 6x139.7 | -12 | Bronze | 2500 | 840177403668 | 4.5 | ||
| Thret | 702I-1790U18 | Firewall | 702 | 17 | 9.0 | 106.1 | 6x139.7 | 18 | Bronze | 2500 | 840177403675 | 5.7 | ||
| Thret | 702I-1790V-12 | Firewall | 702 | 17 | 9.0 | 125.2 | 8x165.1 | -12 | Bronze | 3800 | 840177403682 | 4.5 | ||
| Thret | 702I-1790V18 | Firewall | 702 | 17 | 9.0 | 125.2 | 8x165.1 | 18 | Bronze | 3800 | 840177403699 | 5.7 | ||
| Thret | 702I-1790W-12 | Firewall | 702 | 17 | 9.0 | 125.2 | 8x170 | -12 | Bronze | 3800 | 840177403705 | 4.5 | ||
| Thret | 702I-1790W18 | Firewall | 702 | 17 | 9.0 | 125.2 | 8x170 | 18 | Bronze | 3800 | 840177403712 | 5.7 |
| Brand | Part # | Name | Style | Diameter | Width | Hub | PCD1 | PCD2 | Offset | Cap | Finish | Load Rating | UPC | Backspace |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Thret | 702G-1790F-12 | Firewall | 702 | 17 | 9.0 | 73 | 5x114.3 | -12 | Satin Black | 2500 | 840177401657 | 4.5 | ||
| Thret | 702G-1790F18 | Firewall | 702 | 17 | 9.0 | 73 | 5x114.3 | 18 | Satin Black | 2500 | 840177403521 | 5.7 | ||
| Thret | 702G-1790J-12 | Firewall | 702 | 17 | 9.0 | 78.1 | 5x127 | -12 | Satin Black | 2500 | 840177401664 | 4.5 | ||
| Thret | 702G-1790J18 | Firewall | 702 | 17 | 9.0 | 78.1 | 5x127 | 18 | Satin Black | 2500 | 840177403538 | 5.7 | ||
| Thret | 702G-1790T-12 | Firewall | 702 | 17 | 9.0 | 87.1 | 6x135 | -12 | Satin Black | 2500 | 840177401671 | 4.5 | ||
| Thret | 702G-1790T18 | Firewall | 702 | 17 | 9.0 | 87.1 | 6x135 | 18 | Satin Black | 2500 | 840177403545 | 5.7 | ||
| Thret | 702G-1790U-12 | Firewall | 702 | 17 | 9.0 | 106.1 | 6x139.7 | -12 | Satin Black | 2500 | 840177401688 | 4.5 | ||
| Thret | 702G-1790U18 | Firewall | 702 | 17 | 9.0 | 106.1 | 6x139.7 | 18 | Satin Black | 2500 | 840177403552 | 5.7 | ||
| Thret | 702G-1790V-12 | Firewall | 702 | 17 | 9.0 | 125.2 | 8x165.1 | -12 | Satin Black | 3800 | 840177403569 | 4.5 | ||
| Thret | 702G-1790V18 | Firewall | 702 | 17 | 9.0 | 125.2 | 8x165.1 | 18 | Satin Black | 3800 | 840177403576 | 5.7 | ||
| Thret | 702G-1790W-12 | Firewall | 702 | 17 | 9.0 | 125.2 | 8x170 | -12 | Satin Black | 3800 | 840177403583 | 4.5 | ||
| Thret | 702G-1790W18 | Firewall | 702 | 17 | 9.0 | 125.2 | 8x170 | 18 | Satin Black | 3800 | 840177403590 | 5.7 |
