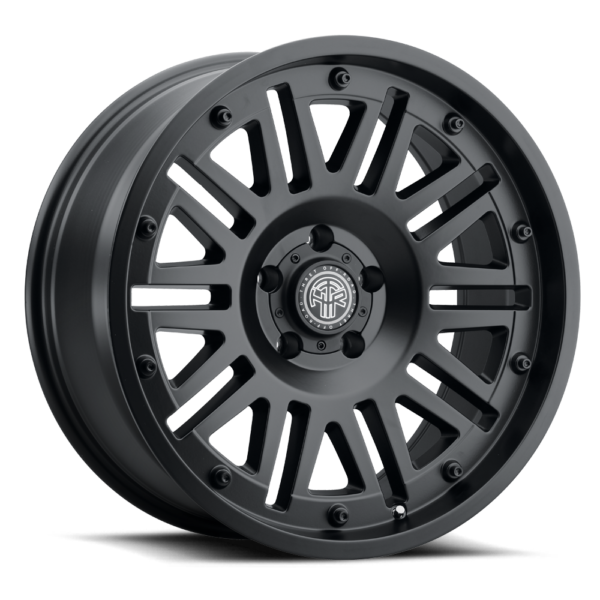

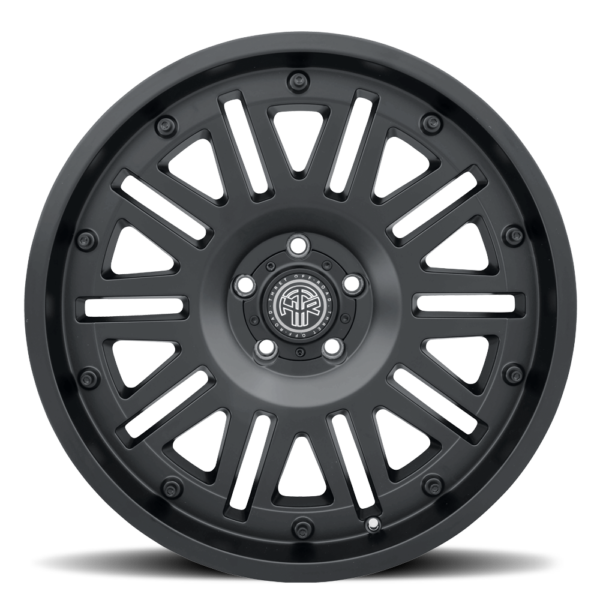

701 Storm Satin Black
701 Storm
The 701 Storm is designed to make an impression, featuring a captivating 10-spoke concave design it comes in two stylish finishes – Satin Black and Satin Black with Milled Spokes – ensuring it complements any rig with a versatile appeal.
Built for durability, the 701 Storm can withstand tough conditions. Stainless steel rivets not only add style but also provide extra protection against the elements, keeping your wheels looking pristine.
Engineered for compatibility, the 701 Storm is available in both 5, 6, and 8 lug applications, making it a perfect fit for various vehicle models.
Key Features:
- Available in 17×9| 18×9 | 20×9
- Striking 10-spoke concave design
- Available in two stylish finishes: Satin Black and Satin Black with Milled Spokes
- Stainless steel rivets for enhanced durability and rust resistance
- Available in 5, 6 and 8 lug applications
| Style | Model | Part Number | Diameter | Width | Finish | PCD1 | PCD2 | BoltPattern | Offset | Centerbore | Backspace | Load Rating | UPC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 701 | STORM | 701G-1790F-12 | 17 | 9.0 | SATIN BLACK | 5x114.3 | 5x114.3 | -12 | 73 | 4.5 | 2500 | 840177401619 | |
| 701 | STORM | 701G-1790J-12 | 17 | 9.0 | SATIN BLACK | 5x127 | 5x127 | -12 | 78.1 | 4.5 | 2500 | 840177401626 | |
| 701 | STORM | 701G-1790T-12 | 17 | 9.0 | SATIN BLACK | 6x135 | 6x135 | -12 | 87.1 | 4.5 | 2500 | 840177401633 | |
| 701 | STORM | 701G-1790U-12 | 17 | 9.0 | SATIN BLACK | 6x139.7 | 6x139.7 | -12 | 106.1 | 4.5 | 2500 | 840177401640 | |
| 701 | STORM | 701G-1890J-12 | 18 | 9.0 | SATIN BLACK | 5x127 | 5x127 | -12 | 78.1 | 4.5 | 2500 | 840177407963 | |
| 701 | STORM | 701G-1890T-12 | 18 | 9.0 | SATIN BLACK | 6x135 | 6x135 | -12 | 87.1 | 4.5 | 2500 | 840177407970 | |
| 701 | STORM | 701G-1890U-12 | 18 | 9.0 | SATIN BLACK | 6x139.7 | 6x139.7 | -12 | 106.1 | 4.5 | 2500 | 840177407987 | |
| 701 | STORM | 701G-2090J-12 | 20 | 9.0 | SATIN BLACK | 5x127 | 5x127 | -12 | 78.1 | 4.5 | 2500 | 840177403385 | |
| 701 | STORM | 701G-2090T-12 | 20 | 9.0 | SATIN BLACK | 6x135 | 6x135 | -12 | 87.1 | 4.5 | 2500 | 840177403392 | |
| 701 | STORM | 701G-2090T0 | 20 | 9.0 | SATIN BLACK | 6x135 | 6x135 | 0 | 87.1 | 5 | 2500 | 840177403408 | |
| 701 | STORM | 701G-2090U-12 | 20 | 9.0 | SATIN BLACK | 6x139.7 | 6x139.7 | -12 | 106.1 | 4.5 | 2500 | 840177403415 | |
| 701 | STORM | 701G-2090U0 | 20 | 9.0 | SATIN BLACK | 6x139.7 | 6x139.7 | 0 | 106.1 | 5 | 2500 | 840177403422 | |
| 701 | STORM | 701G-2090V0 | 20 | 9.0 | SATIN BLACK | 8x165.1 | 8x165.1 | 0 | 125.2 | 5 | 3800 | 840177407994 | |
| 701 | STORM | 701G-2090W0 | 20 | 9.0 | SATIN BLACK | 8x170 | 8x170 | 0 | 125.2 | 5 | 3800 | 840177408007 |
| Style | Model | PartNumber | Diameter | Width | Finish | PCD1 | PCD2 | BoltPattern | Offset | Centerbore | Backspace | Load Rating | UPC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 702 | FIREWALL | 702G-1790F-12 | 17 | 9.0 | SATIN BLACK | 5x114.3 | 5x114.3 | -12 | 73 | 4.5 | 2500 | 840177401657 | |
| 702 | FIREWALL | 702G-1790J-12 | 17 | 9.0 | SATIN BLACK | 5x127 | 5x127 | -12 | 78.1 | 4.5 | 2500 | 840177401664 | |
| 702 | FIREWALL | 702G-1790T-12 | 17 | 9.0 | SATIN BLACK | 6x135 | 6x135 | -12 | 87.1 | 4.5 | 2500 | 840177401671 | |
| 702 | FIREWALL | 702G-1790U-12 | 17 | 9.0 | SATIN BLACK | 6x139.7 | 6x139.7 | -12 | 106.1 | 4.5 | 2500 | 840177401688 | |
| 702 | FIREWALL | 702G-1790V-12 | 17 | 9.0 | SATIN BLACK | 8x165.1 | 8x165.1 | -12 | 125.2 | 4.5 | 3800 | 840177403569 | |
| 702 | FIREWALL | 702G-1790W-12 | 17 | 9.0 | SATIN BLACK | 8x170 | 8x170 | -12 | 125.2 | 4.5 | 3800 | 840177403583 | |
| 702 | FIREWALL | 702G-1890J-12 | 18 | 9.0 | SATIN BLACK | 5x127 | 5x127 | -12 | 78.1 | 4.5 | 2500 | 840177408069 | |
| 702 | FIREWALL | 702G-1890T-12 | 18 | 9.0 | SATIN BLACK | 6x135 | 6x135 | -12 | 87.1 | 4.5 | 2500 | 840177408076 | |
| 702 | FIREWALL | 702G-1890U-12 | 18 | 9.0 | SATIN BLACK | 6x139.7 | 6x139.7 | -12 | 106.1 | 4.5 | 2500 | 840177408083 | |
| 702 | FIREWALL | 702G-1890V0 | 18 | 9.0 | SATIN BLACK | 8x165.1 | 8x165.1 | 0 | 125.2 | 5 | 3800 | 840177408090 | |
| 702 | FIREWALL | 702G-1890W0 | 18 | 9.0 | SATIN BLACK | 8x170 | 8x170 | 0 | 125.2 | 5 | 3800 | 840177408106 | |
| 702 | FIREWALL | 702G-2090J-12 | 20 | 9.0 | SATIN BLACK | 5x127 | 5x127 | -12 | 78.1 | 4.5 | 2500 | 840177408151 | |
| 702 | FIREWALL | 702G-2090T-12 | 20 | 9.0 | SATIN BLACK | 6x135 | 6x135 | -12 | 87.1 | 4.5 | 2500 | 840177408168 | |
| 702 | FIREWALL | 702G-2090U-12 | 20 | 9.0 | SATIN BLACK | 6x139.7 | 6x139.7 | -12 | 106.1 | 4.5 | 2500 | 840177408175 | |
| 702 | FIREWALL | 702G-2090V0 | 20 | 9.0 | SATIN BLACK | 8x165.1 | 8x165.1 | 0 | 125.2 | 5 | 3800 | 840177408182 | |
| 702 | FIREWALL | 702G-2090W0 | 20 | 9.0 | SATIN BLACK | 8x170 | 8x170 | 0 | 125.2 | 5 | 3800 | 840177408199 |
