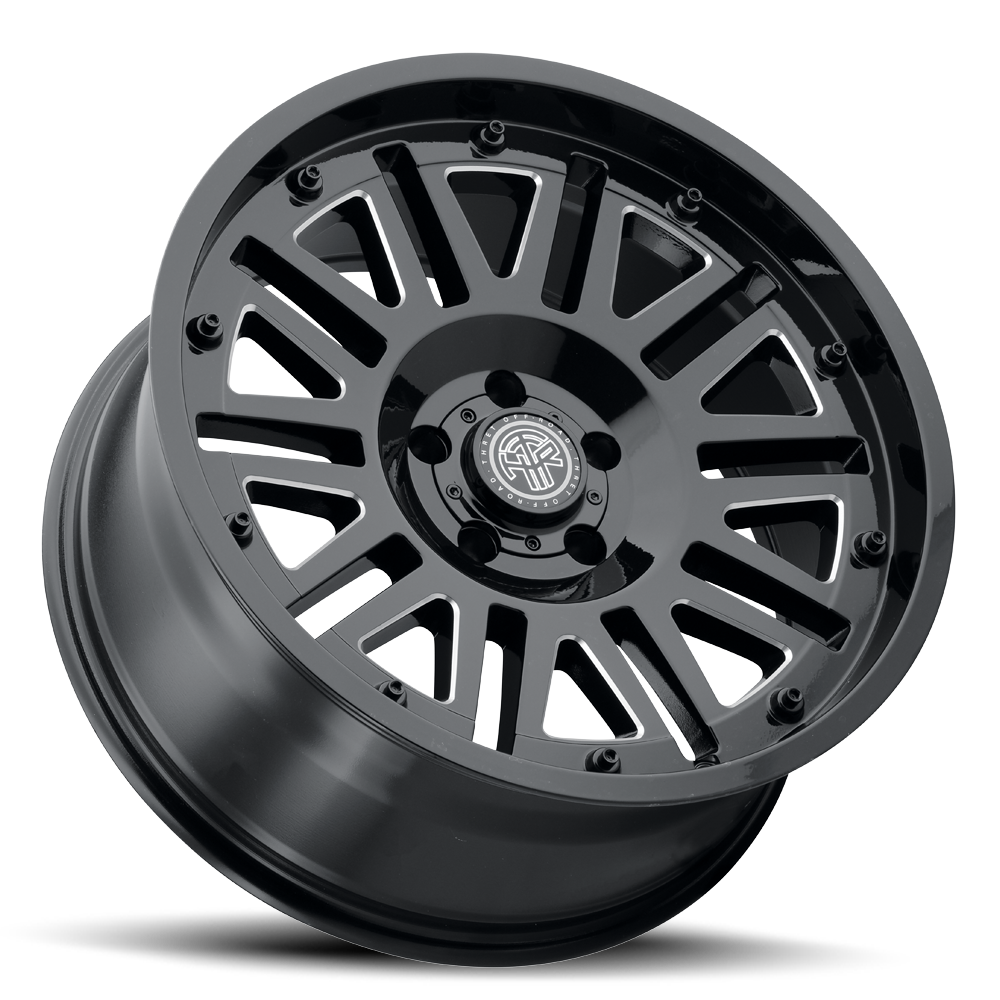

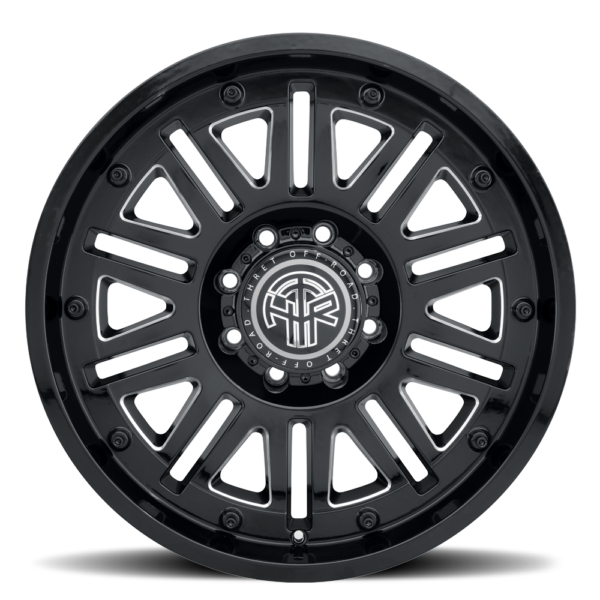

701 Storm Gloss Black Milled
701 Storm
The 701 Storm features a captivating 10-spoke concave design, available in Satin Black and Satin Black with Milled Spokes, ensuring it complements any rig with versatile appeal. Stainless steel rivets not only add style but also provide extra protection against the elements, keeping your wheels looking pristine. Engineered for compatibility, the 701 Storm is available in 5, 6, and 8 lug applications.
Key Features:
- Striking 10-spoke concave design.
- Available in two stylish finishes: Satin Black and Satin Black with Milled Spokes.
- Stainless steel rivets for enhanced durability and rust resistance.
- Versatile 5, 6, and 8 lug applications.
Sizes Available:
- 17 x 9
- 18 x 9
- 20 x 9
| Style | Model | Part Number | Diameter | Width | Finish | PCD1 | PCD2 | Bolt Pattern | Offset | Centerbore | Backspace | Load Rating | UPC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 701 | STORM | 701AD-1790F-12 | 17 | 9.0 | GLOSS BLACK/MILLED | 5x114.3 | 5x114.3 | -12 | 73 | 4.5 | 2500 | 840177403439 | |
| 701 | STORM | 701AD-1790J-12 | 17 | 9.0 | GLOSS BLACK/MILLED | 5x127 | 5x127 | -12 | 78.1 | 4.5 | 2500 | 840177407901 | |
| 701 | STORM | 701AD-1790T-12 | 17 | 9.0 | GLOSS BLACK/MILLED | 6x135 | 6x135 | -12 | 87.1 | 4.5 | 2500 | 840177407918 | |
| 701 | STORM | 701AD-1790U-12 | 17 | 9.0 | GLOSS BLACK/MILLED | 6x139.7 | 6x139.7 | -12 | 106.1 | 4.5 | 2500 | 840177407925 | |
| 701 | STORM | 701AD-1890J-12 | 18 | 9.0 | GLOSS BLACK/MILLED | 5x127 | 5x127 | -12 | 78.1 | 4.5 | 2500 | 840177408014 | |
| 701 | STORM | 701AD-1890T-12 | 18 | 9.0 | GLOSS BLACK/MILLED | 6x135 | 6x135 | -12 | 87.1 | 4.5 | 2500 | 840177408021 | |
| 701 | STORM | 701AD-1890U-12 | 18 | 9.0 | GLOSS BLACK/MILLED | 6x139.7 | 6x139.7 | -12 | 106.1 | 4.5 | 2500 | 840177408038 | |
| 701 | STORM | 701AD-2090J-12 | 20 | 9.0 | GLOSS BLACK/MILLED | 5x127 | 5x127 | -12 | 78.1 | 4.5 | 2500 | 840177407932 | |
| 701 | STORM | 701AD-2090T-12 | 20 | 9.0 | GLOSS BLACK/MILLED | 6x135 | 6x135 | -12 | 87.1 | 4.5 | 2500 | 840177403484 | |
| 701 | STORM | 701AD-2090T0 | 20 | 9.0 | GLOSS BLACK/MILLED | 6x135 | 6x135 | 0 | 87.1 | 5 | 2500 | 840177407949 | |
| 701 | STORM | 701AD-2090U-12 | 20 | 9.0 | GLOSS BLACK/MILLED | 6x139.7 | 6x139.7 | -12 | 106.1 | 4.5 | 2500 | 840177403507 | |
| 701 | STORM | 701AD-2090U0 | 20 | 9.0 | GLOSS BLACK/MILLED | 6x139.7 | 6x139.7 | 0 | 106.1 | 5 | 2500 | 840177407956 | |
| 701 | STORM | 701AD-2090V0 | 20 | 9.0 | GLOSS BLACK/MILLED | 8x165.1 | 8x165.1 | 0 | 125.2 | 5 | 3800 | 840177408045 | |
| 701 | STORM | 701AD-2090W0 | 20 | 9.0 | GLOSS BLACK/MILLED | 8x170 | 8x170 | 0 | 125.2 | 5 | 3800 | 840177408052 |
| Style | Model | Part Number | Diameter | Width | Finish | PCD1 | PCD2 | BoltPattern | Offset | Centerbore | Backspace | Load Rating | UPC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 701 | STORM | 701G-1790F-12 | 17 | 9.0 | SATIN BLACK | 5x114.3 | 5x114.3 | -12 | 73 | 4.5 | 2500 | 840177401619 | |
| 701 | STORM | 701G-1790J-12 | 17 | 9.0 | SATIN BLACK | 5x127 | 5x127 | -12 | 78.1 | 4.5 | 2500 | 840177401626 | |
| 701 | STORM | 701G-1790T-12 | 17 | 9.0 | SATIN BLACK | 6x135 | 6x135 | -12 | 87.1 | 4.5 | 2500 | 840177401633 | |
| 701 | STORM | 701G-1790U-12 | 17 | 9.0 | SATIN BLACK | 6x139.7 | 6x139.7 | -12 | 106.1 | 4.5 | 2500 | 840177401640 | |
| 701 | STORM | 701G-1890J-12 | 18 | 9.0 | SATIN BLACK | 5x127 | 5x127 | -12 | 78.1 | 4.5 | 2500 | 840177407963 | |
| 701 | STORM | 701G-1890T-12 | 18 | 9.0 | SATIN BLACK | 6x135 | 6x135 | -12 | 87.1 | 4.5 | 2500 | 840177407970 | |
| 701 | STORM | 701G-1890U-12 | 18 | 9.0 | SATIN BLACK | 6x139.7 | 6x139.7 | -12 | 106.1 | 4.5 | 2500 | 840177407987 | |
| 701 | STORM | 701G-2090J-12 | 20 | 9.0 | SATIN BLACK | 5x127 | 5x127 | -12 | 78.1 | 4.5 | 2500 | 840177403385 | |
| 701 | STORM | 701G-2090T-12 | 20 | 9.0 | SATIN BLACK | 6x135 | 6x135 | -12 | 87.1 | 4.5 | 2500 | 840177403392 | |
| 701 | STORM | 701G-2090T0 | 20 | 9.0 | SATIN BLACK | 6x135 | 6x135 | 0 | 87.1 | 5 | 2500 | 840177403408 | |
| 701 | STORM | 701G-2090U-12 | 20 | 9.0 | SATIN BLACK | 6x139.7 | 6x139.7 | -12 | 106.1 | 4.5 | 2500 | 840177403415 | |
| 701 | STORM | 701G-2090U0 | 20 | 9.0 | SATIN BLACK | 6x139.7 | 6x139.7 | 0 | 106.1 | 5 | 2500 | 840177403422 | |
| 701 | STORM | 701G-2090V0 | 20 | 9.0 | SATIN BLACK | 8x165.1 | 8x165.1 | 0 | 125.2 | 5 | 3800 | 840177407994 | |
| 701 | STORM | 701G-2090W0 | 20 | 9.0 | SATIN BLACK | 8x170 | 8x170 | 0 | 125.2 | 5 | 3800 | 840177408007 |
